Firmware updates

This page applies to:

  • HAProxy ALOHA - all versions

In this section, you will learn how to check which version of the firmware you currently have and how to download and install a newer version.

Before you update Jump to heading

Before performing the update, follow these steps:

  1. Issues with the HAProxy Enterprise configuration can cause the LB Layer7 haproxy service to fail after an upgrade. Even if the service is performing as desired before the upgrade, the upgrade could introduce changes that cause a failure afterward.

    The haproxy service validates its configuration file when it starts or reloads. Follow these steps:

    • Go to the Services tab.

    • Reload the haproxy service to trigger validation.

    • Go to the Logs tab.

    • In the console logs section, look for config : parsing alerts and warnings.

      The following example output shows an alert for the obsolete tune.chksize parameter and a warning for the option httplog directive.

      console log
      text
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [NOTICE] (2664) : haproxy version is 2.5.0-aloha-bb8aa2ca-flx2.14_albva
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [NOTICE] (2664) : path to executable is /usr/sbin/haproxy
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [ALERT] (2664) : config : parsing [/tmp/haproxy.conf:2]: option 'tune.chksize' is not supported any more (tune.bufsize is used instead).
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [WARNING] (2664) : config : parsing [/tmp/haproxy.conf:31] : backend 'webfarm' : 'option httplog' directive is ignored in backends.
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [ALERT] (2664) : config : Error(s) found in configuration file : /tmp/haproxy.conf
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [ALERT] (2664) : config : Fatal errors found in configuration.
      console log
      text
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [NOTICE] (2664) : haproxy version is 2.5.0-aloha-bb8aa2ca-flx2.14_albva
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [NOTICE] (2664) : path to executable is /usr/sbin/haproxy
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [ALERT] (2664) : config : parsing [/tmp/haproxy.conf:2]: option 'tune.chksize' is not supported any more (tune.bufsize is used instead).
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [WARNING] (2664) : config : parsing [/tmp/haproxy.conf:31] : backend 'webfarm' : 'option httplog' directive is ignored in backends.
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [ALERT] (2664) : config : Error(s) found in configuration file : /tmp/haproxy.conf
      Apr 7 22:34:37 ALOHA1 user.warn admin[2136]: [ALERT] (2664) : config : Fatal errors found in configuration.
    • An alert is a fatal condition and prohibits the service from starting. A warning indicates a condition that is not fatal now but may become fatal in a future release. Fix both types of conditions before proceeding.

    • HAProxy ALOHA also indicates an invalid haproxy configuration file in the LB Layer7 tab by displaying This configuration is not valid in the notification bar at the bottom of the display.

  2. If you run two HAProxy ALOHA instances in active-standby mode, ensure that your current load balancer configuration has been pushed to the standby instance. Go to the Services tab and click the push button next to each service where it is shown.

  3. When updating to version 11.0 and beyond, first update the firmware to version 10.5. That version allows you to upload larger firmware packages, up to 25MB.

  4. When updating to version 14.5 and beyond, first update the firmware to the latest 13.5.x version (no lower than 13.5.16). That version raises the temporary partition to 64MB and prevents a filesystem size issue.

    Alternatively, raise the partition size to 64MB with the root mount command:

    nix
    sudo root mount -o remount,size=64M /var
    nix
    sudo root mount -o remount,size=64M /var

    Failure to increase the partition size before the update can result in errors like Request Entity Too Large or No space left on device.

  5. Ensure changes are saved:

    nix
    sudo config save
    nix
    sudo config save

Check your firmware version Jump to heading

To obtain the current version of the firmware that you have installed:

  1. In the web user interface, go to the Setup tab and find the firmware version number in the System information, where it is labeled Version.

Alternatively:

  1. Log in to the HAProxy ALOHA command-line interface.

  2. Read the file /usr/share/factory/version to see the version.

    nix
    cat /usr/share/factory/version
    nix
    cat /usr/share/factory/version
    output
    text
    Product: aloha
    Model: albva
    Branch: 13.0
    Version: 13.0.4
    Build: 1312
    Date: 2021-05-17 08:32:31
    URL: http://www.haproxy.com/download/aloha/13.0
    output
    text
    Product: aloha
    Model: albva
    Branch: 13.0
    Version: 13.0.4
    Build: 1312
    Date: 2021-05-17 08:32:31
    URL: http://www.haproxy.com/download/aloha/13.0

    The firmware version number is composed of three digits separated by dots, <major version>.<minor version>.<patch version>. Major and minor versions include new features and bug fixes, while patch versions include only bug fixes.

Install the new firmware Jump to heading

Follow these steps to install the new firmware.

Download the latest firmware Jump to heading

Follow these steps to download the latest version of the firmware.

  1. Obtain your credentials for accessing HAProxy ALOHA downloads. You can create a new support ticket in the HAProxy Technologies Customer Portal to request your credentials.

    For virtual appliances, when updating to a new major version (for example 13.0, 14.0, 15.0), you will be given a new license key to install prior to the update. This will prevent the appliance from starting in evaluation mode. The new license will appear as invalid until you update the firmware. Licenses for hardware appliances are valid for all firmware versions.

  2. Browse to the website https://www.haproxy.com/download/aloha/17.0/. Enter your credentials to access the folder.

  3. Go into the folder with the highest number and download the .bin file for your appliance model:

    Appliance type File to download
    virtual appliance file with albva prefix
    hardware appliance file with alb<MODEL> prefix

You can update the HAProxy ALOHA firmware via user interface or the command line.

Install the firmware in the UI Jump to heading

If you run two HAProxy ALOHA instances in active-standby mode, then updating one at a time is preferable to avoid downtime. Start with the standby instance, then once completed switch it into active mode so that you can update the current active instance.

To update the standby instance:

  1. Export and save the existing configuration: go to the Setup tab, and in the Configuration section, click Export.

  2. Begin the update: go to the Setup tab, and in the Firmware section, click Choose File to select the .bin file.

  3. Click Update next to the .bin file name. The new version is added to the Next boot image list and selected. You could also roll back to a previous version.

  4. Click Update next to the Next boot image list.

  5. Click Reboot.

  6. Promote the standby instance to be the active instance:

    • From the Services tab, click the Setup icon on the network service line.

    • Update the vrrp prio number to be greater than the current primary instance’s value. This will configure the VRRP group so that the system with the higher priority number will become the new primary instance, avoiding network disruptions during the firmware update process.

    • Click OK then Close.

      The standby becomes the new active instance and handles the traffic. We recommend monitoring HAProxy ALOHA until you are confident that it is functioning correctly.

      You can still swap the active and standby back by lowering the instance’s vrrp prio number to its original value. You can also revert by following the steps in the Roll back section below.

To update the other HAProxy ALOHA instance:

  1. Go to the Setup tab, and in the Firmware section, click Choose File to upload the .bin file.

  2. Click Update.

  3. Click Reboot.

  4. If you are running two HAProxy ALOHA instances, you can change the original standby instance to be on standby again:

    • On the standby instance, go to the Services tab, click the Setup icon on the network service line.

    • Lower the vrrp prio number to the value before the update.

    • Click OK then Close.

      At this stage, HAProxy ALOHA has been updated to the new firmware. During this update, the load balancer configuration may have been migrated to use newer keywords if older keywords were obsoleted.

      However, these configuration changes will not persist after a reboot. To make them persist, go to the Setup tab and click Save in the Configuration section. Do this when you are confident that you will not need to roll back the firmware.

Install the firmware in the CLI Jump to heading

This section applies to:

  • HAProxy ALOHA 13.0 and newer

If you run two HAProxy ALOHA instances in active-standby mode, then updating one at a time is preferable to avoid downtime. Start with the standby instance, then once completed switch it into active mode so that you can update the current active instance.

The text editor available in Aloha via the CLI is vi.

  1. Once you have downloaded the updated firmware as outlined above, copy it to /tmp using scp:

    nix
    scp firmware-file.bin admin@ALOHA_IP:/tmp
    nix
    scp firmware-file.bin admin@ALOHA_IP:/tmp
  2. Type sudo su to complete the steps as root user:

    nix
    sudo su
    nix
    sudo su
  3. In the file /etc/config.rc update the vrrp prio number to be greater than the current primary instance’s value. For example:

    config.rc
    text
    service network eth0
    ######### Interface eth0
    ip autoconfig
    ip address 192.168.0.200/255.255.255.0
    ip route default 192.168.0.1
    vrrp inst default prio 100
    config.rc
    text
    service network eth0
    ######### Interface eth0
    ip autoconfig
    ip address 192.168.0.200/255.255.255.0
    ip route default 192.168.0.1
    vrrp inst default prio 100
  4. Apply changes:

    nix
    service network restart
    nix
    service network restart
  5. Install the firmware using update-boot-image; replace firmware-file.bin with the name of the file:

    nix
    update-boot-image /tmp/firmware-file.bin
    nix
    update-boot-image /tmp/firmware-file.bin
  6. Ensure the changes are saved:

    nix
    config save
    nix
    config save
  7. The standby becomes the new active instance and handles the traffic. We recommend monitoring HAProxy ALOHA until you are confident that it is functioning correctly. You can still swap the active and standby back by lowering the instance’s vrrp prio number to its original value.

  8. To update the other (now standby) instance, repeat the same steps.

  9. Once done, you can change the original standby instance to be on standby again by editing the /etc/config.rc file and lowering the vrrp prio number to the value before the update.

Validate the haproxy configuration file Jump to heading

As before, validate the LB Layer7 haproxy service configuration file. Conditions noted as warnings in the configuration file could become alerts (fatal errors) in a future release.

  1. Go to the Services tab.

  2. Reload the haproxy service to trigger validation.

  3. Go to the Logs tab.

  4. In the console logs section, look for config : parsing alerts and warnings. Fix both types of conditions before proceeding.

  5. Ensure changes are saved:

    nix
    sudo config save
    nix
    sudo config save

Update additional modules Jump to heading

This page applies to:

  • HAProxy ALOHA 13.0 and newer

If you previously installed any additional modules, then you should update them too to be compatible with version 17.0 of the firmware. Module updates may also contain new features and bug fixes.

Follow these links to find instructions for updating each of the modules:

Roll back an update Jump to heading

A rollback will not revert the load balancer configuration if you have saved it on the Setup tab. In rare cases, it may be incompatible with the older firmware.

By default, HAProxy ALOHA stores two firmware images:

  • The current running firmware.
  • The firmware that was running before the last update.

Follow these steps to revert to the firmware that was running before the last update:

  1. On the Setup tab, scroll down to the Firmware area.

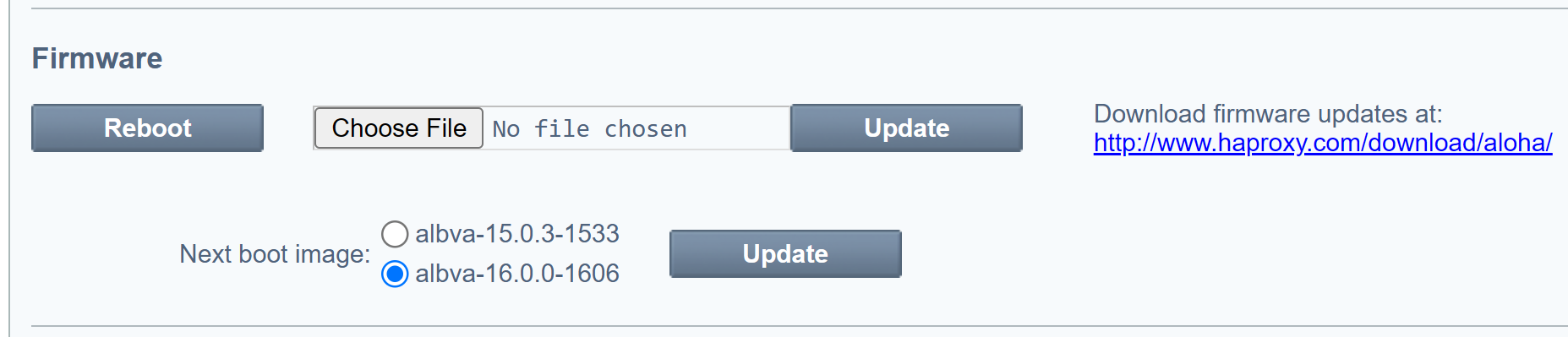

  2. Look for the Next boot image field. The box checked indicates the currently running firmware.

    Next boot image

  3. Check the other box pointing to the old image.

  4. Click Update.

  5. Click Reboot.
