Real-time Dashboard

The Real-time Dashboard is a web application that collects live metrics from your HAProxy Enterprise load balancers and displays them. You can also perform actions like disabling servers.

Although you can install the dashboard onto your own web server, we host it for you at https://dashboard.haproxy.com/.

Installation Jump to heading #

The Real-time Dashboard is a web application that collects live metrics from your load balancers and displays them. You can also perform actions like disabling servers.

1. Use your system’s package manager to install the dashboard package onto your HAProxy Enterprise server:

   apt yum zypper pkg

   nix
   sudo apt-get install hapee-2.8r1-lb-dashboard

   nix
   sudo apt-get install hapee-2.8r1-lb-dashboard

   nix
   sudo yum install hapee-2.8r1-lb-dashboard

   nix
   sudo yum install hapee-2.8r1-lb-dashboard

   nix
   sudo zypper install hapee-2.8r1-lb-dashboard

   nix
   sudo zypper install hapee-2.8r1-lb-dashboard

   nix
   sudo pkg install hapee-2.8r1-lb-dashboard

   nix
   sudo pkg install hapee-2.8r1-lb-dashboard

   This installs the following components:

   Component	Description
   /etc/hapee-2.8/dashboard-module.cfg	Configuration that exposes a new endpoint within HAProxy Enterprise at port 9022. When a request arrives at this port, HAProxy Enterprise dispatches it to a Lua module that returns statistics for the dashboard to collect.
   /opt/hapee-2.8/dashboard/dashboard-module/	Folder that contains the Lua module that generates HAProxy Enterprise statistics. It contains dashboard.luac, the Lua module for statistics and dashboard-config.lua, the configuration file that defines a cluster of HAProxy Enterprise nodes from which to gather statistics.
   /opt/hapee-2.8/dashboard/dashboard/	Folder that contains the web application for the dashboard.

2. Copy the folder /opt/hapee-2.8/dashboard/dashboard to your web server to host it on an IP address and port of your choosing. Consult your web server’s instructions for hosting static files.

   Info

   Because the dashboard starts without any data, you can use the one we host on haproxy.com. Go to https://dashboard.haproxy.com to access your hosted dashboard.

   To give you an example of hosting the dashboard yourself, you can use the following Python commands to start a rudimentary web server directly from the dashboard directory:

   nix
   cd /opt/hapee-2.8/dashboard/dashboard
   python3 -m http.server 8000

   nix
   cd /opt/hapee-2.8/dashboard/dashboard
   python3 -m http.server 8000

   Open the Real-time Dashboard at port 8000 using your web browser.



3. You must configure the dashboard to fetch metrics data from HAProxy Enterprise. You have two options:

   • Configure the Lua module
   • Configure the Dashboard Gateway

Lua module Jump to heading #

The dashboard package you used to install the dashboard UI also includes a Lua module that returns HAProxy Enterprise statistics. It allows the Real-time Dashboard to display live data.

Enable metrics for a single node Jump to heading #

1. Edit the configuration file:

   • On Debian/Ubuntu, /etc/default/hapee-2.8-lb
   • On Alma/Oracle/Redhat/Rocky, /etc/sysconfig/hapee-2.8-lb

   Change the OPTIONS line so that it contains the following -f argument, which loads the dashboard-module.cfg file when the HAProxy Enterprise service starts:

   hapee-VERSION-lb
   text
   OPTIONS="-f /etc/hapee-2.8/dashboard-module.cfg"

   hapee-VERSION-lb
   text
   OPTIONS="-f /etc/hapee-2.8/dashboard-module.cfg"

   The dashboard-module.cfg file starts a new listener at port 9022 that exposes metrics data. This data comes from an applet defined in the Dashboard Lua module located in /opt/hapee-2.8/dashboard/dashboard-module.

2. Restart the HAProxy Enterprise service for the change to take effect:

   nix
   sudo systemctl restart hapee-2.8-lb

   nix
   sudo systemctl restart hapee-2.8-lb

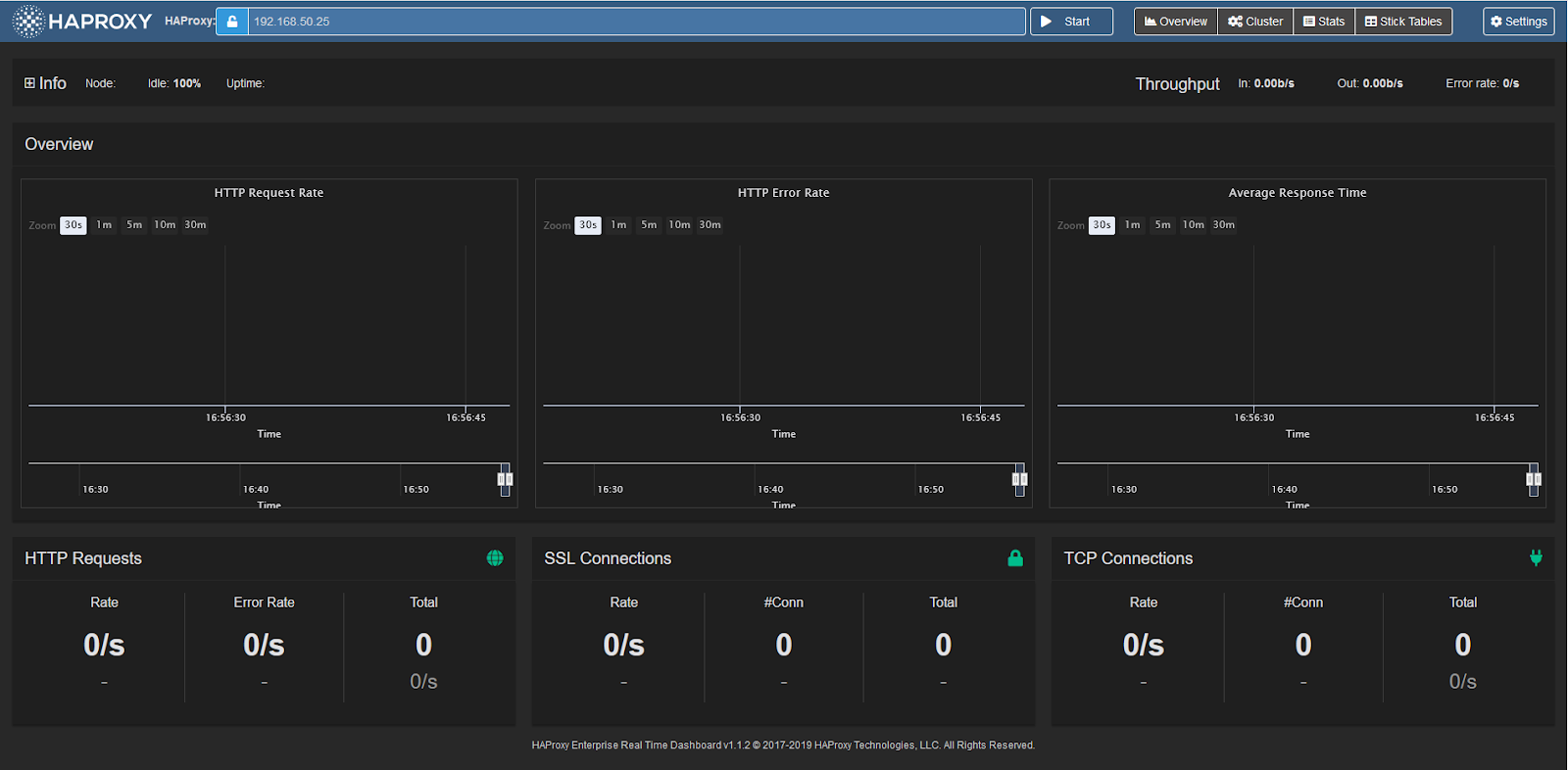

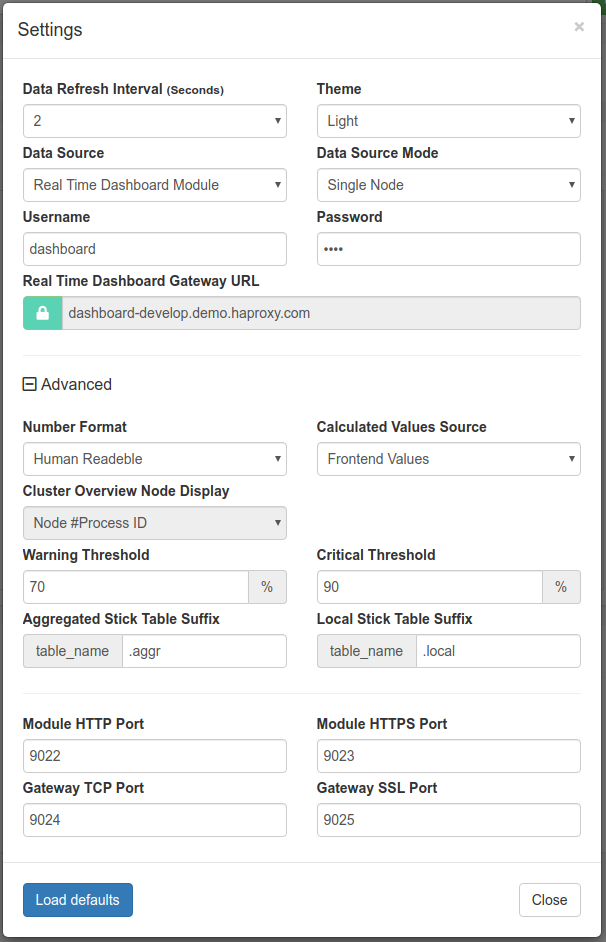

3. Open the dashboard in your browser. Click the Settings button to display the Settings window.

4. Set Data Source to Real-time Dashboard Module.

5. Set Data Source Mode to Single Node and close the window.

6. At the top of the Real-time Dashboard is the header bar, which display the address from where it fetches statistics. Change the URL to be the address of your HAProxy Enterprise node. You do not need to specify a port. The port defaults to 9022, so you do not need to set it here. If the address is already correct, you do not need to change it.

7. Click the Start button to complete setup.

Enable metrics for multiple nodes Jump to heading #

Optionally, you can connect to data feeds from multiple HAProxy Enterprise nodes running on different servers:

1. On each HAProxy Enterprise server, install the Real-time Dashboard.

2. Edit the configuration file to enable metrics. See Enable metrics for a single node.

3. Choose one server to act as the “aggregation primary” node. On that server, update the file /opt/hapee-2.8/dashboard/dashboard-module/dashboard-config.lua. Initially, it contains the following empty configuration:

   dashboard-config.lua
   lua
   conf = {
       cluster = {
           nodes = nil,
           master = false
       }
   }

   dashboard-config.lua
   lua
   conf = {
       cluster = {
           nodes = nil,
           master = false
       }
   }

4. Add the IP address and port of each HAProxy Enterprise node to the nodes property. Also, set the master property to true:

   dashboard-config.lua
   lua
   conf = {
       cluster = {
           nodes = {
               "192.168.50.25:9022",
               "192.168.50.26:9022",
               "192.168.50.27:9022",
           },
           master = true
       }
   }

   dashboard-config.lua
   lua
   conf = {
       cluster = {
           nodes = {
               "192.168.50.25:9022",
               "192.168.50.26:9022",
               "192.168.50.27:9022",
           },
           master = true
       }
   }

5. Restart the HAProxy Enterprise service:

   nix
   sudo systemctl restart hapee-2.8-lb

   nix
   sudo systemctl restart hapee-2.8-lb

6. Open the Real-time Dashboard in your browser, then click the Settings button to display the Settings window.

7. Set Data Source to Real-time Dashboard Module.

8. Set Data Source Mode to Cluster Aggregation and close the window.

9. Click the Start button to complete setup.

Set HTTP basic authentication Jump to heading #

When you enable HTTP basic authentication in the file dashboard-module.cfg, the Real-time Dashboard Lua module’s API is restricted to certain users. By default, the configuration defines a user named “dashboard” with the password “test”. Change the username and password, and update the Real-time Dashboard’s settings to match.

1. Use mkpasswd to create an SHA-2 password:

   nix
   mkpasswd -m SHA-256

   nix
   mkpasswd -m SHA-256

   Info

   If mkpasswd is not present on your OS, it can be installed by downloading the whois package on most Linux distributions; on RedHat you may have to explicitly install it via sudo yum install mkpasswd.

2. Edit the configuration file /etc/hapee-2.8/dashboard-module.cfg2 to change the dashboard_users userlist section so that it contains one user line to define a username and encrypted password.

3. Add the password to the user line, and restart the HAProxy Enterprise service:

   nix
   sudo systemctl restart hapee-2.8-lb

   nix
   sudo systemctl restart hapee-2.8-lb

4. Open the Real-time Dashboard in your browser and click the Settings button to display the Settings window. Set the Username and Password values to match.

Enable HTTPS between the Dashboard UI and HAProxy Enterprise Jump to heading #

The UI fetches metrics from HAProxy Enterprise. To encrypt this communication, you must enable HTTPS.

1. Obtain a valid TLS certificate for the node where you are running HAProxy Enterprise. This is the aggregation primary node when you run multiple HAProxy Enterprise nodes.

2. Save it to /etc/hapee-2.8/certs.

3. Edit the file /etc/hapee-2.8/dashboard-module.cfg to remove the following line from the listen dashboard section:

   haproxy
   bind *:9022

   haproxy
   bind *:9022

4. Replace it with the following line, changing site.pem to be name of your TLS certificate:

   haproxy
   bind *:9023 ssl crt /etc/hapee-2.8/certs/site.pem

   haproxy
   bind *:9023 ssl crt /etc/hapee-2.8/certs/site.pem

5. Restart the HAProxy Enterprise service:

   nix
   sudo systemctl restart hapee-2.8-lb

   nix
   sudo systemctl restart hapee-2.8-lb

6. Open the Real-time Dashboard in your browser and change the address in the header bar to be the hostname that matches the TLS certificate’s CN value. Click the padlock icon to turn it green.

7. Click the Start button to complete setup.

Dashboard Gateway Jump to heading #

The Dashboard Gateway is an alternative to the Real-time Dashboard Lua module and works with all versions of HAProxy. It collects metrics data from one or several HAProxy Enterprise nodes and exposes it for the Dashboard Gateway to use. By default, it runs an API at port 9020.

Before proceeding, install the dashboard-gateway package depending on your operating system:

nix
sudo apt-get install hapee-2.8r1-lb-dashboard-gateway

nix
sudo apt-get install hapee-2.8r1-lb-dashboard-gateway

nix
sudo yum install hapee-2.8r1-lb-dashboard-gateway

nix
sudo yum install hapee-2.8r1-lb-dashboard-gateway

nix
sudo zypper install hapee-2.8r1-lb-dashboard-gateway

nix
sudo zypper install hapee-2.8r1-lb-dashboard-gateway

nix
sudo pkg install hapee-2.8r1-lb-dashboard-gateway

nix
sudo pkg install hapee-2.8r1-lb-dashboard-gateway

Enable metrics for a single node Jump to heading #

1. Edit your HAProxy Enterprise configuration file to add a stats socket directive in the global section.

   This enables the HAProxy Runtime API used to fetch metrics. The IP address is 127.0.0.1 and the port is 9024. You must set the level to admin so that the Dashboard Gateway can manage the HAProxy Enterprise node, as follows:

   haproxy
   global
     stats socket ipv4@127.0.0.1:9024 level admin

   haproxy
   global
     stats socket ipv4@127.0.0.1:9024 level admin

2. Restart HAProxy:

   nix
   sudo systemctl restart hapee-2.8-lb

   nix
   sudo systemctl restart hapee-2.8-lb

3. Copy the config.json.example configuration file and rename it config.json.

   See Configure the Dashboard Gateway for more details.

   nix
   cd /opt/hapee-2.8/dashboard/dashboard-gateway/conf
   sudo cp config.json.example config.json

   nix
   cd /opt/hapee-2.8/dashboard/dashboard-gateway/conf
   sudo cp config.json.example config.json

   By default, this file contains the following:

   config.json
   json
   {
     "isLogging": true,
     "logFile": "access.log",
     "defaultHandler": "socket",
     "defaultHostSSL": false,
     "nodes": [
     {
       "host": "127.0.0.1",
       "port": "9024"
     }
     ]
   }

   config.json
   json
   {
     "isLogging": true,
     "logFile": "access.log",
     "defaultHandler": "socket",
     "defaultHostSSL": false,
     "nodes": [
     {
       "host": "127.0.0.1",
       "port": "9024"
     }
     ]
   }

4. Start the Dashboard Gateway:

   nix
   sudo systemctl enable hapee-2.8-lb-dashboard-gateway
   sudo systemctl start hapee-2.8-lb-dashboard-gateway

   nix
   sudo systemctl enable hapee-2.8-lb-dashboard-gateway
   sudo systemctl start hapee-2.8-lb-dashboard-gateway

5. Open the Real-time Dashboard in your browser and click the Settings button to display the Settings window.

6. Set Data Source to Real-time Dashboard Gateway.

7. Set Data Source Mode to Single Node.

8. Set Real-time Dashboard Gateway URL to the URL where the Dashboard Gateway is running. The port defaults to 9020. If you have configured it to use HTTPS, click the padlock icon to make it green, and close the window.

9. Change the URL in the header bar to the address of your HAProxy Enterprise node’s socket. The port defaults to 9024, so you do not need to set it here.

10. Click the Start button to complete setup.

Enable metrics for multiple nodes Jump to heading #

Optionally, you can connect to data feeds from multiple HAProxy Enterprise nodes running on different servers:

1. On each HAProxy Enterprise server, edit the HAProxy Enterprise configuration file to add a stats socket directive in the global section.

2. Give an IP address that the server running Dashboard Gateway can reach, or an asterisk (*) to listen on all IP addresses:

   haproxy
   global
     stats socket ipv4@*:9024 level admin

   haproxy
   global
     stats socket ipv4@*:9024 level admin

3. Restart HAProxy:

   nix
   sudo systemctl restart hapee-2.8-lb

   nix
   sudo systemctl restart hapee-2.8-lb

4. Choose one server to be the “aggregation primary” node. On that server, ensure that the dashboard-gateway package is installed.

5. Make a copy of the config.json.example configuration file and rename it config.json.

   nix
   cd /opt/hapee-2.8/dashboard/dashboard-gateway/conf
   sudo cp config.json.example config.json

   nix
   cd /opt/hapee-2.8/dashboard/dashboard-gateway/conf
   sudo cp config.json.example config.json

6. Update the file config.json so that its nodes section lists each HAProxy Enterprise node’s IP address and port.

   See Configure the Dashboard Gateway for more details.

   config.json
   json
   {
      "isLogging": true,
      "logFile": "access.log",
      "defaultHandler": "socket",
      "defaultHostSSL": false,
      "nodes": [
         {
            "host": "127.0.0.1",
            "port": 9024
         },
         {
            "host": "192.168.50.26",
            "port": 9024
         }
      ]
   }

   config.json
   json
   {
      "isLogging": true,
      "logFile": "access.log",
      "defaultHandler": "socket",
      "defaultHostSSL": false,
      "nodes": [
         {
            "host": "127.0.0.1",
            "port": 9024
         },
         {
            "host": "192.168.50.26",
            "port": 9024
         }
      ]
   }

7. Start or restart the Dashboard Gateway:

   nix
   sudo systemctl enable hapee-2.8-lb-dashboard-gateway
   sudo systemctl start hapee-2.8-lb-dashboard-gateway

   nix
   sudo systemctl enable hapee-2.8-lb-dashboard-gateway
   sudo systemctl start hapee-2.8-lb-dashboard-gateway

8. Open the Real-time Dashboard in your browser and click the Settings button to display the Settings window.

9. Set Data Source to Real-time Dashboard Gateway.

10. Set Data Source Mode to Cluster Aggregation.

11. Set Real-time Dashboard Gateway URL to the URL where the Dashboard Gateway is running.

    If you have configured it to use HTTPS, click the padlock icon to make it green. Then, close the window.

12. Click the Cluster button to display the Cluster Setup window.

    Check that all nodes are listed. Then, click Use Cluster to complete setup.

Configure the Dashboard Gateway Jump to heading #

You can enable various settings for the Dashboard Gateway in the configuration file /opt/hapee-2.8/dashboard/dashboard-gateway/conf/config.json. Make sure you restart the Dashboard Gateway service after making any change to this file. This section describes the available options.

Here is an example configuration:

config.json
json
{
   "apiRoot": "/",
   "authChallenge": false,
   "authRealm": "HAProxy Enterprise Real-time Dashboard Gateway",
   "defaultHandler": "socket",
   "defaultHost": "127.0.0.1",
   "defaultHostPort": 9024,
   "defaultHostSSL": false,
   "defaultModulePassword": "test",
   "defaultModuleUser": "dashboard",
   "disableHttp": false,
   "disableHttps": true,
   "httpsCertFile": "cert.pem",
   "httpsKeyFile": "key.pem",
   "httpPort": 9020,
   "httpsPort": 9021,
   "isLogging": true,
   "logFile": "access.log",
   "tlsPassphrase": "mypassphrase",
   "skipBasicAuth": false,
   "nodes": [
      {
         "host": "127.0.0.1",
         "port": 9024,
         "handler": "socket",
         "ssl": false,
         "user": "dashboard",
         "password": "test"
      }
   ]
}

config.json
json
{
   "apiRoot": "/",
   "authChallenge": false,
   "authRealm": "HAProxy Enterprise Real-time Dashboard Gateway",
   "defaultHandler": "socket",
   "defaultHost": "127.0.0.1",
   "defaultHostPort": 9024,
   "defaultHostSSL": false,
   "defaultModulePassword": "test",
   "defaultModuleUser": "dashboard",
   "disableHttp": false,
   "disableHttps": true,
   "httpsCertFile": "cert.pem",
   "httpsKeyFile": "key.pem",
   "httpPort": 9020,
   "httpsPort": 9021,
   "isLogging": true,
   "logFile": "access.log",
   "tlsPassphrase": "mypassphrase",
   "skipBasicAuth": false,
   "nodes": [
      {
         "host": "127.0.0.1",
         "port": 9024,
         "handler": "socket",
         "ssl": false,
         "user": "dashboard",
         "password": "test"
      }
   ]
}

The following table describes these options:

The nodes collection has the following options:

Enable HTTP Basic authentication Jump to heading #

When you enable HTTP Basic authentication in the file config.json and set authChallenge to true, you restrict the Dashboard Gateway API to certain users. You can set one or more usernames and passwords.

1. The configuration file /opt/hapee-2.8/dashboard/dashboard-gateway/conf/htpasswd.json has the following format:

   htpasswd.json
   json
   {
      "username_1": {
         "password": "sha256_password_hash",
         "accessAll": "true"
      },
      "username_2": {
         // . . .
      },
      // . . .
   }

   htpasswd.json
   json
   {
      "username_1": {
         "password": "sha256_password_hash",
         "accessAll": "true"
      },
      "username_2": {
         // . . .
      },
      // . . .
   }

   For example, the default configuration is shown:

   htpasswd.json
   json
   {
      "dashboard": {
         "password": "9f86d081884c7d659a2feaa0c55ad015a3bf4f1b2b0b822cd15d6c15b0f00a08",
         "accessAll": true
      }
   }

   htpasswd.json
   json
   {
      "dashboard": {
         "password": "9f86d081884c7d659a2feaa0c55ad015a3bf4f1b2b0b822cd15d6c15b0f00a08",
         "accessAll": true
      }
   }

   This adds the username dashboard with a password of test.

2. Edit the file to change the existing username and password.

   Use the following command to create the encrypted password:

   nix
   echo -n "YOUR_PASSWORD" | sha256sum

   nix
   echo -n "YOUR_PASSWORD" | sha256sum

3. Open the Real-time Dashboard in your browser and click the Settings button to display the Settings window. Set the Username and Password values to match those you just configured.

Enable HTTPS between the aggregation primary and child nodes Jump to heading #

The aggregation primary node fetches metrics from multiple HAProxy Enterprise nodes. To encrypt this communication, you must enable HTTPS.

1. Obtain a valid TLS certificate for each HAProxy Enterprise child node.

2. Make sure that the certificate is in PEM format.

   Then, combine the private key and the public certificate into a single PEM file. Copy it to the node under the path /etc/hapee-2.8/certs.

3. Edit the node’s HAProxy Enterprise configuration file.

   In the global section, add an ssl and crt parameter to the stats socket directive. Also, change its port to 9025:

   haproxy
   global
     stats socket ipv4@*:9025 level admin ssl crt /etc/hapee-2.8/certs/site.pem

   haproxy
   global
     stats socket ipv4@*:9025 level admin ssl crt /etc/hapee-2.8/certs/site.pem

4. On the aggregation primary node, edit the file /opt/hapee-2.8/dashboard/dashboard-gateway/conf/config.json.

   For each node where you want to enable TLS, set host to the node’s FQDN so that it matches the certificate; Set port to 9025; Set ssl set to true.

   config.json
   json
   {
      "isLogging": true,
      "logFile": "access.log",
      "defaultHandler": "socket",
      "defaultHostSSL": false,
      "nodes": [
         {
            "host": "127.0.0.1",
            "port": 9024
         },
         {
            "host": "lb2.test.com",
            "port": 9025,
            "ssl": true
         }
      ]
   }

   config.json
   json
   {
      "isLogging": true,
      "logFile": "access.log",
      "defaultHandler": "socket",
      "defaultHostSSL": false,
      "nodes": [
         {
            "host": "127.0.0.1",
            "port": 9024
         },
         {
            "host": "lb2.test.com",
            "port": 9025,
            "ssl": true
         }
      ]
   }

5. Restart the Dashboard Gateway:

   nix
   sudo systemctl restart hapee-2.8-lb-dashboard-gateway

   nix
   sudo systemctl restart hapee-2.8-lb-dashboard-gateway

Enable HTTPS between the Dashboard UI and the Dashboard Gateway Jump to heading #

The UI fetches metrics from the Dashboard Gateway. To encrypt this communication, you must enable HTTPS.

1. Obtain a valid TLS certificate for the node where you are running the Dashboard Gateway.

   This will be the aggregation primary node if running multiple HAProxy Enterprise nodes.

2. Make sure that the certificate and private key files are in PEM format.

   Copy both the certificate and key files to the path /opt/hapee-2.8/dashboard/dashboard-gateway. These should be made available before restarting the Dashboard Gateway.

3. Edit the file /opt/hapee-2.8/dashboard/dashboard-gateway/conf/config.json.

   • Set disableHttps to false
   • Set httpsCertFile to the path to the certificate file
   • Set httpsKeyFile to the path to the key file.

   config.json
   json
   {
      "isLogging": true,
      "logFile": "access.log",
      "defaultHandler": "socket",
      "defaultHostSSL": false,
      "disableHttps": false
      "httpsCertFile": "cert.pem",
      "httpsKeyFile": "key.pem",
      "nodes": [
         {
            "host": "127.0.0.1",
            "port": 9024
         },
         {
            "host": "lb2.test.com",
            "port": 9025,
            "ssl": true
         }
      ]
   }

   config.json
   json
   {
      "isLogging": true,
      "logFile": "access.log",
      "defaultHandler": "socket",
      "defaultHostSSL": false,
      "disableHttps": false
      "httpsCertFile": "cert.pem",
      "httpsKeyFile": "key.pem",
      "nodes": [
         {
            "host": "127.0.0.1",
            "port": 9024
         },
         {
            "host": "lb2.test.com",
            "port": 9025,
            "ssl": true
         }
      ]
   }

4. Restart the Dashboard Gateway:

   nix
   sudo systemctl restart hapee-2.8-lb-dashboard-gateway

   nix
   sudo systemctl restart hapee-2.8-lb-dashboard-gateway

5. Open the Real-time Dashboard in your browser and click the Settings button to display the Settings window.

6. Set Real-time Dashboard Gateway URL to the FQDN of the Dashboard Gateway so that it matches the TLS certificate (e.g. dashboard-gateway.test.com:9021).

   Its port defaults to 9021, so you do not need to set it here.

7. Click the padlock icon in the Real-time Dashboard Gateway URL box so that it turns green. Then, click Close.

Using the dashboard Jump to heading #

You configure the Real-time Dashboard in Settings at the top right of the header bar.

Real-time Dashboard saves these settings automatically in the browser’s local storage and they persist throughout page reloads and browser restarts.

1. You can modify the following settings:

   Basic setting	Description
   Data Refresh Interval	Data refresh period.
   Theme	GUI theme. Currently available themes are Dark (default) and Light.
   Data Source	Real-time Dashboard module (default) or Real-time Dashboard Gateway.
   Data Source Mode	Single Node: Real-time Dashboard requests and displays only the data from the module node it connects to, or the addressed node when the data source is Gateway. Cluster Aggregation: Real-time Dashboard requests and displays data from all HAProxy Enterprise nodes from which the module or Gateway was configured to aggregate data.
   Username	Username for connecting to the Module or Gateway.
   Password	Password for connecting to the Module or Gateway.
   Real-time Dashboard Gateway Address	URL of the Real-time Dashboard Gateway (applicable when Data Source is set to Real-time Dashboard Gateway).

   Advanced setting	Description
   Number Format	Select between three different formats to display numerical values in Real-time Dashboard: Human Readable: formats values and adds SI order-of-magnitude suffixes (i.e. 1.26 kb/s). Formatted Values: inserts commas in the value and limits the number of decimal places (i.e. 1,261.00 b/s). Raw Values: displays the raw value from the statistics, except when Real-time Dashboard calculates the value, in which case it also limits the number of decimal places (i.e. 1261.00 b/s).
   Calculated Values Source	Frontend Values: The values for graphs and Info Bar are summarized from the frontend block stats, errors are request errors. Backend Values: The values for graphs and Info Bar are summarized from the backend block stats, errors are response errors.
   Cluster Overview Node Display	Determines the Node display format on Cluster Overview pane: Node #Process ID: i.e. my_server #2. Host:Port: i.e. 127.0.0.1:9022.
   Warning Threshold	For values on the Overview Pane with configured limits, this determines the percentage of the limit acting as a threshold over which values show a warning color (yellow). Default is 70%.
   Critical Threshold	For values on the Overview Pane with configured limits, this determines the percentage of the limit acting as a threshold over which values show a critical color (red). Default is 90%.
   Aggregated Stick Table Suffix	The suffix that the Global Profiling Engine takes on to denote the aggregated (i.e. to) stick tables. Default is .aggr
   Local Stick Table Suffix	The suffix that the Global Profiling Engine takes on to denote the source (i.e. from) stick tables. Default is .local
   Module HTTP Port	Port number that Real-time Dashboard listens on by default for non-TLS HTTP connections. If there is no other value specified in the Header URL Box, this is the port number that Real-time Dashboard connects to. Default: 9022.
   Module HTTPS Port	Port number where the Real-time Dashboard listens on by default for HTTPS connections (when the URL Box is in locked state). Default: 9023.
   Gateway TCP Port	Port number where the HAProxy Enterprise Admin Socket listens on by default for non-TLS socket connections. This value gets relayed to the Dashboard Gateway if there is no other value specified in the URL Box. Default: 9024.
   Gateway SSL Port	Port number where the HAProxy Enterprise Admin Socket listens on by default for TLS-encrypted socket connections (when the URL Box is in locked state. If there is no other port value given, this value gets relayed to the Dashboard Gateway). Default: 9025.

2. Click Close to modify your settings.

3. Click Load defaults if you need to return to default settings.

Navigate around the Real-time Dashboard Jump to heading #

The general layout of the application is split into two main sections. Header Bar, Info Bar and a pane displaying selected views below it.

Header bar Jump to heading #

Located at the top of the screen, the header bar allows you to perform the following tasks:

To reload the page:

• Click on the HAProxy Enterprise Logo (1).

To enter the address of the HAProxy Enterprise node:

• In the URL Box (2), use a format similar to [<http|https>://]domain|IP[:port][/path].
• The mandatory information is the domain name or IP address of the HAProxy Enterprise node. It defaults to the domain where the UI is hosted.
• You can omit http or https because this information is stored
• If you do not specify a port, Real-time Dashboard uses the default port
• If you enter a path, Real-time Dashboard appends the standard API endpoints (/dashboard or /cluster) to it
• The icon indicates whether the access to the HAProxy Enterprise node uses TLS encryption. This is a toggle function.
• If you connect to Real-time Dashboard over HTTPS, you cannot connect to an HAProxy Enterprise node with an unencrypted link; hence the toggle is disabled.
• If you connect to an HAProxy Enterprise node over HTTPS, we recommend that you use a valid SSL certificate. Invalid certificates (not trusted by the browser) cause Javascript calls to fail silently and return a Request Error message when you click on Servers Status.

To turn on or off data fetching:

• Click on the Start/Stop button (3). If you set the data refresh interval to Off in Settings, you can display an instantaneous update by clicking Refresh.

To display the overview:

• Click on Overview button (4).

To display the cluster overview:

• Click on Cluster button (5) Available only in Cluster Aggregation mode. In Single Mode, it displays the Cluster Setup Dialog (see below).

To display statistics:

• Click on Stats button (6).

To display stick tables:

• Click on Stick button (7).

To configure the Real-time Dashboard:

• Click Settings (8) to display configuration options.

Info Bar Jump to heading #

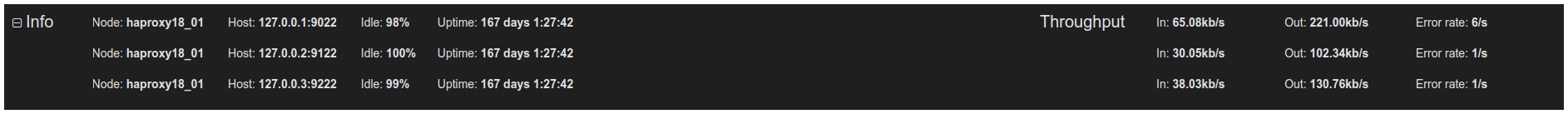

The Info Bar contains general information about an node. In Cluster Aggregation mode, it displays nodes to which the Real-time Dashboard is connected.

When in Cluster Aggregation mode, the main view of the Info Bar displays aggregated information; to drill down to information for each node, click the + icon.

The Info bar gives the following information:

Read metrics in Real-time Dashboard Jump to heading #

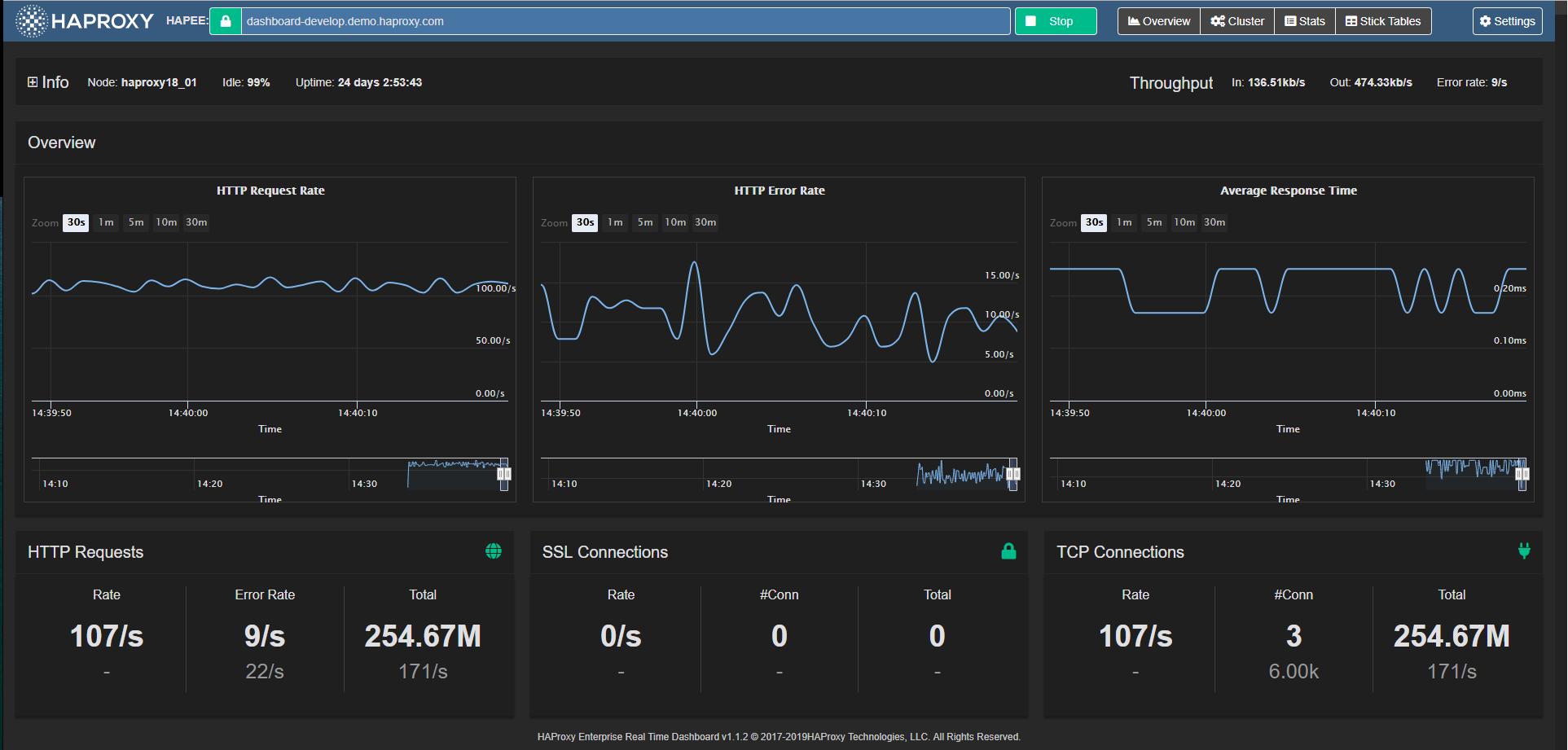

The Overview window is the initial view of the application. It displays the node-level (or cluster-level) summarized information, as well as key metric charts.

It contains the following elements:

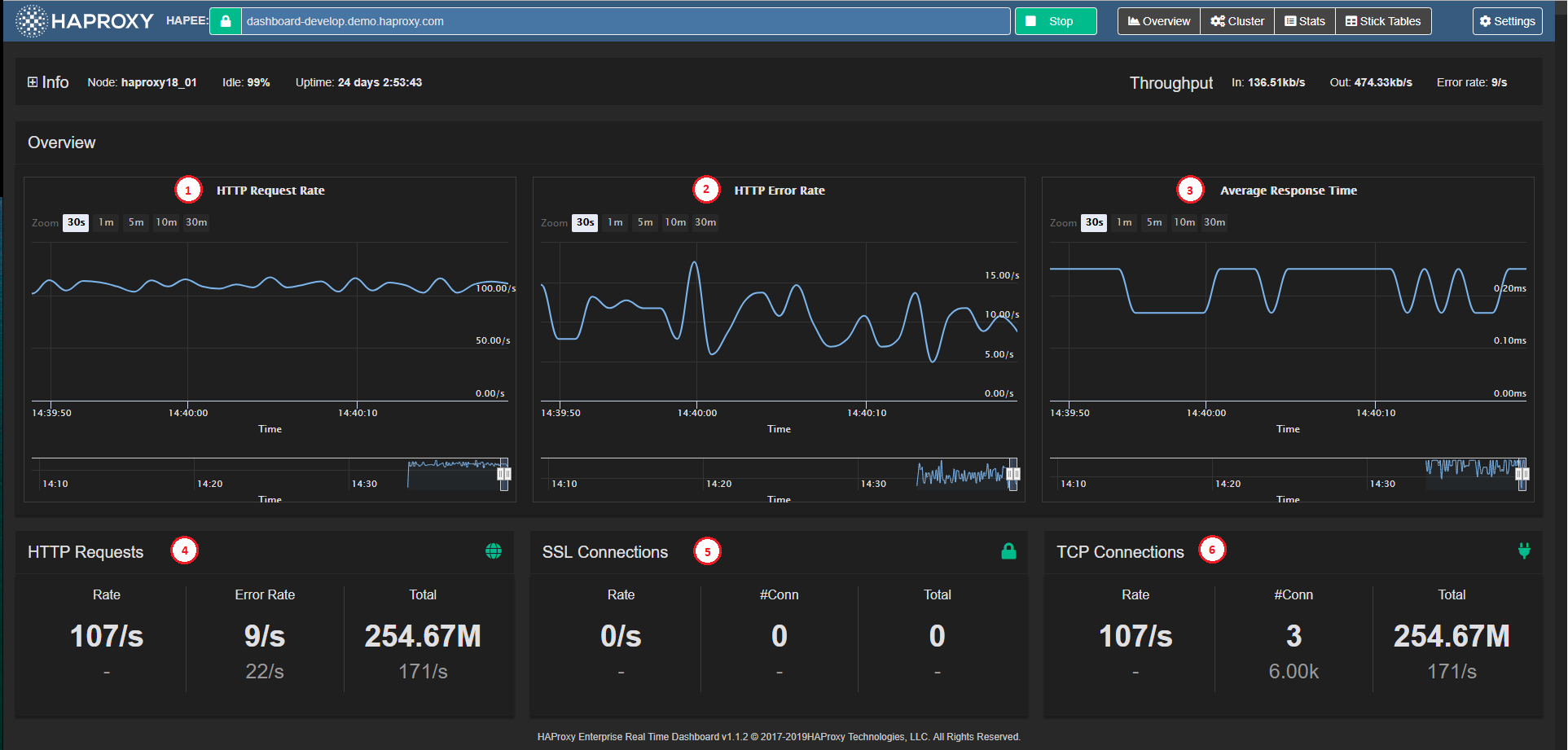

HTTP Request Rate Chart (1) Charts the total HTTP request rate across the node (or across all nodes in Cluster Mode).

HTTP Error Rate Chart (2) Charts the total HTTP error rate across the node (or across all nodes in Cluster Mode).

Average Response Time Chart (3) Charts the average response time across the node (or across all nodes in Cluster Mode).

HTTP Requests Panel (4) Displays the node-level (or aggregate) HTTP Request related stats and limits.

SSL Connections Panel (5) Displays the node-level (or aggregate) SSL Connection related stats and limits.

TCP Connections Panel (6) Displays the node-level (or aggregate) TCP Connection related stats and limits.

Overview charts Jump to heading #

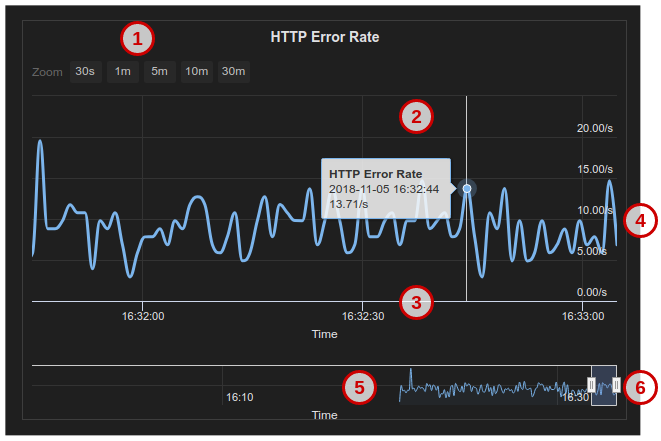

The Overview graphs display information for HTTP traffic, average response time, and SSL/TCP connections.

Zoom Level Selector (1) Sets five different zoom levels for the Main Chart Display (30 seconds, 1 minute, 3 minutes, 10 minutes, and 30 minutes) The zoom level is synchronized across all three Overview Graphs.

Main Chart Display (2) A tool tip appears when hovering over any chart point to show the detailed data point (time and value). This data point is synchronized across all three Overview Charts.

Time Axis (3) Horizontal axis is the data point event time axis

Value Axis (4) Vertical axis is the data-point values axis

Chart Navigator (5) Displays the local data history in a miniature view with its own time axis.

Navigator Handles (6) Focuses on a time period in the local history when you drag the handles. When you release the handle, the selected zoom level/period is synchronized across the three Overview Charts.

Read statistics in Real-time Dashboard Jump to heading #

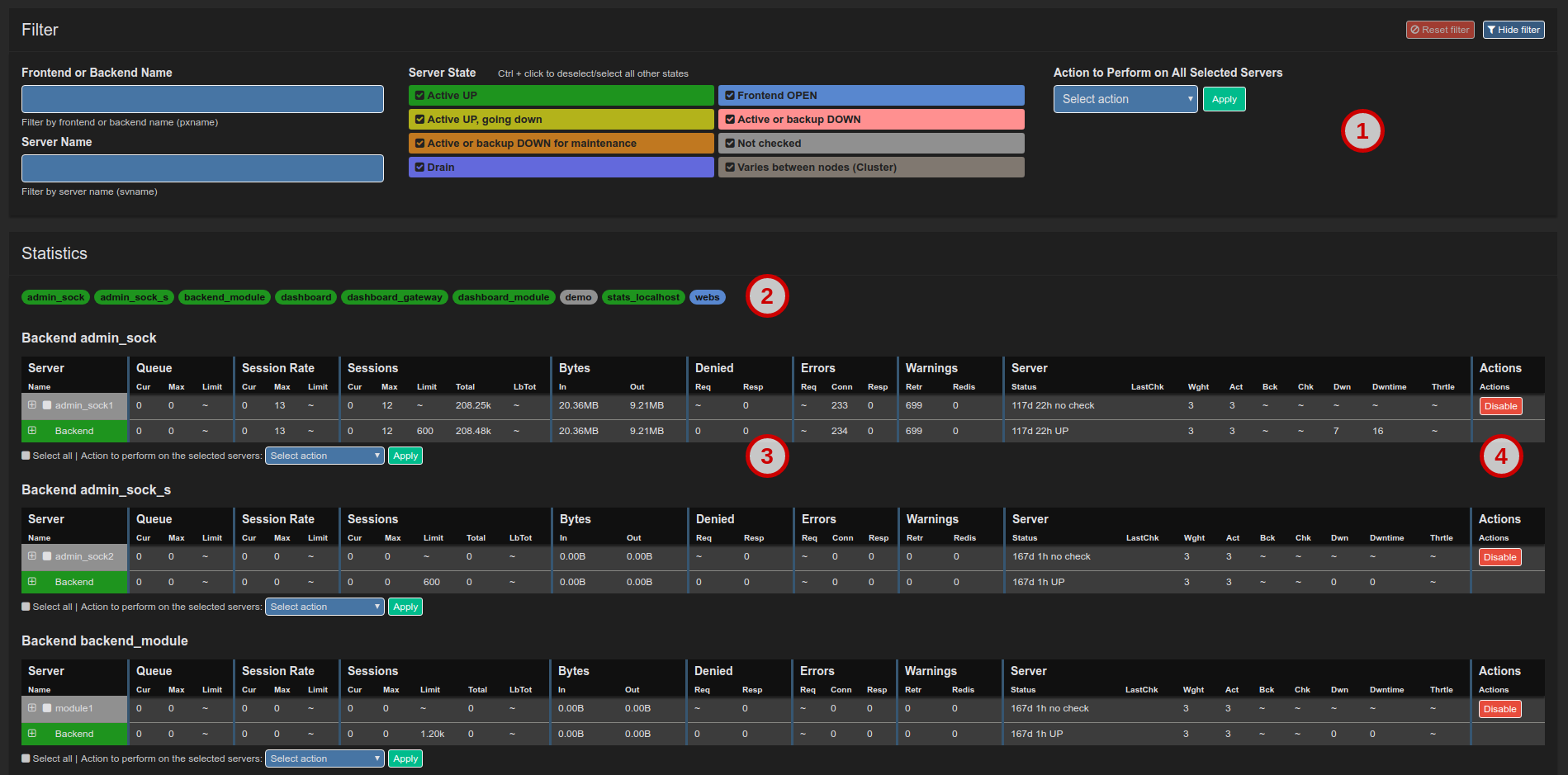

The Stats Pane presents individual Proxy (frontend, backend or listen block) statistics, as well as individual Server statistics in a table view.

The Stats Pane consists of the following major sections:

Filter Block (1) See Set filter criteria

Quick Navigation buttons (2) Gives quick access to the selected Proxy on the screen.

Stats Tables (3) Proxy and Server statistics, see Stats Pane under Data Fields for more detailed data on statistics values.

Quick Action Buttons (4) See below

Stats table Jump to heading #

The tables operate slightly differently depending on the Data Source Mode:

• Single Node: Each server appears on one line, and its statistics and status come from the node to which Real-time Dashboard is connected.

• Cluster Aggregation: Each server appears as a header line in gray with statistics and status aggregated across all the nodes that it contains.

Depending on the mode, Stats tables display the following information:

Proxy Name Real-time Dashboard infers from available server lines whether the block is a frontend, backend, or listen (or FE/BE pair with same name, which it treats as a listen block).

Server Names Name of the server

Statistics Columns Hover over each column heading to display additional information. If the server state is not up, the entire row takes on the Server State color, as used for Filter Block labels. See Stats Pane in the section Understanding data from Real-time Dashboard for more detailed data on statistics values.

Drill down for more information:

• Click the + icons to display statistics for each node (when in cluster mode)

Perform an administrative task:

1. Select a server or all servers in the proxy.

2. Choose an action from the drop-down list.

3. Click Apply.

Enable or disable proxy:

The Enable/Disable button on the right of the screen allows you to turn off the server for maintenance or turn it back on if it is down.

Read proxy and server states Jump to heading #

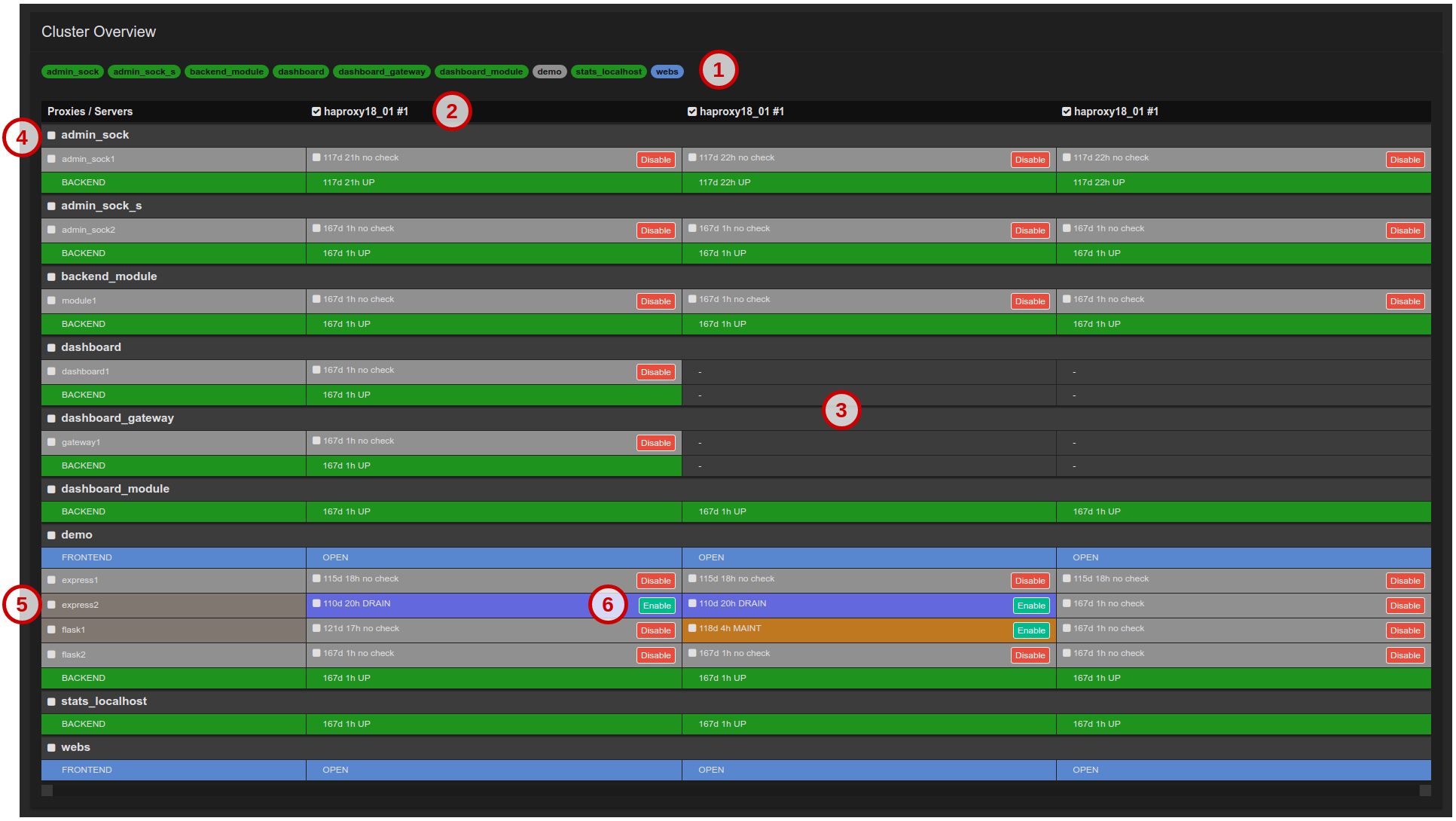

The Cluster Overview displays with a matrix/“spreadsheet” overview of states of Proxies and Servers for each connected HAProxy Enterprise Node (see Dashboard Aggregation Cluster). The columns in the matrix represent the nodes (which can be HAProxy Enterprise nodes or processes).

The key elements on the pane are:

Quick navigation buttons (1) Allows quick access to a server or proxy.

Cluster nodes (2) The rows in the matrix represent HAProxy Enterprise Nodes. The check boxes allow you to select a server or proxy on which to perform an administrative task.

Cluster Overview Matrix (3) Displays an overview of statuses for Proxies and Servers across Nodes. Servers that do not exist on specific nodes display an empty space (background color) in the matrix.

Proxy Rows (4) The rows are organized into Proxies containing Servers. The check boxes allow you to select a server or proxy on which to perform an administrative task.

Server Rows (5) The status color of the header column is medium-gray when the status for the server varies across nodes

Server Columns (6) Each cell (column) represents the Server status on that column’s node.

Set filter criteria Jump to heading #

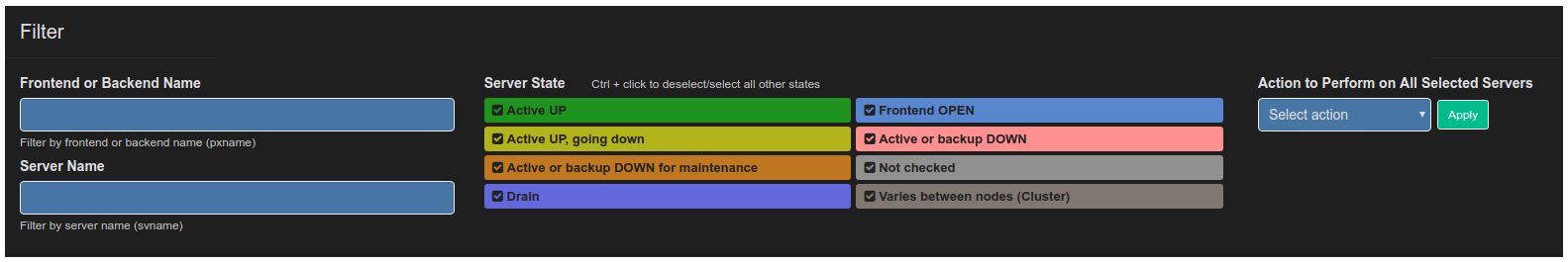

Filtering allows you to display or to perform administrative tasks on selected proxies (i.e. frontend, backend and/or listen blocks) in both Stats and Cluster panes.

The filter criteria persist when you switch between Stats and Cluster panes.

Select filter Jump to heading #

You can set filters in the following ways:

• Text - Allows filtering by Frontend or Backend Name (i.e. Proxy name) or by Server Name. There are three modes of filtering:

  • Partial String Matching: For example, when you enter ss, it matches up with blessing, pass, or sserver.
  • Multi-String Partial Matching: For example, when you enter we se it matches up with webserver, awesome_service and we_base.
  • RegEx Matching: For example, when you enter a string that begins and ends with a forward slash (/) it matches only those strings that a regular expression between those two slashes would match. The precise regular expression syntax used is JavaScript Regular Expressions.

• Server Status - Allows filtering by server status. A click on any server status toggles its state between selected and unselected.

Use filter for administrative tasks:

For a list of administrative tasks, see the section on how to Manage servers.

Reset filter:

• Click Reset filter to restore the filter to default state (all Proxies/Servers visible); this function is enabled only when filter is active.

Hide filter:

• Click Hide filterto collapse the filter block (to free up vertical screen space).

Retrieve Stick Table contents Jump to heading #

The Stick Table Explorer enables the user to retrieve the contents of stick tables from the HAProxy Enterprise node, and to sort them and filter them to gain insight into the data contained within, and even export them into Excel-friendly CSV format.

The Real-time Dashboard works with the Stick Table Explorer to enable you to explore the contents of HAProxy Enterprise Stick Tables in your node(s).

The aggregation cluster mode assumes that the Global Profiling Engine aggregates stick tables across the same set of nodes, and that the primary node uses aggregated stick tables from the Global Profiling Engine.

Local tables used for aggregation have the suffix .local, and resulting aggregated tables have the suffix .aggr (modifiable in General Settings).

Apart from setting up the aggregation cluster and editing table suffixes as necessary, there is no additional setting to configure in Real-time Dashboard.

Retrieve a stick table Jump to heading #

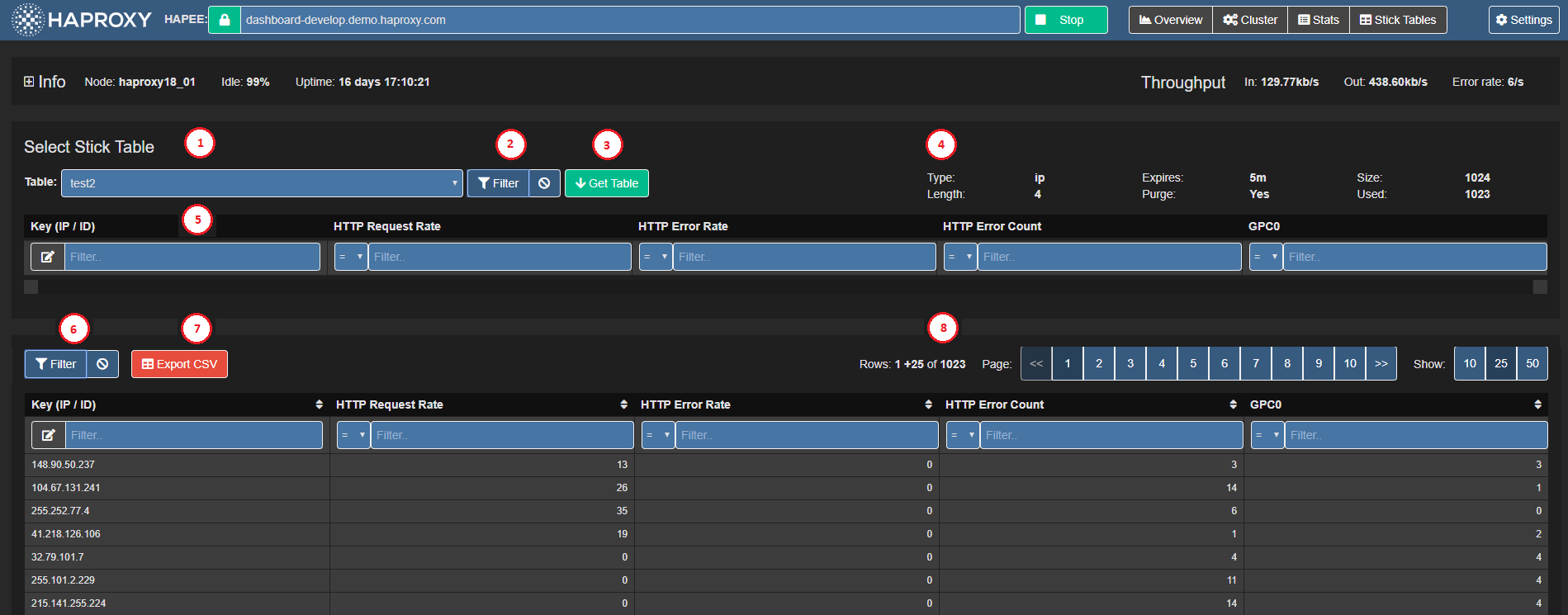

1. Click on Stick Tablesin the header bar to display the Stick Table Explorer.

2. Select a table from a drop-down list (1).

3. Filter out any unwanted data by clicking Filter (2) and specifying the filter criteria. Toggling this button shows or hides the filter.

4. Click Get (3) to retrieve the following stick table information (4):

   • Type - type of key
   • Length - number of table columns
   • Expires - how long a row is kept in the table before it expires
   • Purge - whether the table purges old elements
   • Size - maximum number of rows
   • Used - current number of rows

Apply filters Jump to heading #

You can filter table data in two stages:

• Globally, prior to node retrieval (5): Real-time Dashboard retrieves data on the HAProxy Enterprise node itself according to the filtering criteria (up to four maximum).

• Locally, in the browser (6): In contrast to the global filter, which occurs on the HAProxy Enterprise node itself, the local filter happens within the browser. When you remove a criterion, the table refreshes accordingly; however, it has no effect on the amount of data retrieved from the node.

You can combine the two filters to limit the data retrieved and refine the data to display within the browser.

Set a filter using the interface:

1. Enter a key (string enclosed in quotes “”).

2. Select an operator from the drop-down list and enter a value.

   Info

   Key does not have any operator and requires a substring for matching.

Set a filter using an expression:

1. In the filter box, click on pencil icon to turn it into a text input box.

2. Enter an expression in the following format: [data_name operator value] AND [data_name operator value] ... AND [data_name operator value]. The logical AND is implicit in the filter and no other logical operator is accepted.

   where:

   • data_name is one of: key, server_id, gpc0, gpc0_rate, gpc1, gpc1_rate, conn_cnt, conn_cur, conn_rate, sess_cnt, sess_rate, http_req_cnt, http_req_rate, http_err_cnt, http_err_rate, bytes_in_cnt, bytes_in_rate, bytes_out_cnt, bytes_out_rate. When you hover over the table header, a tool tip displays its data point name.
   • operator is any of =, !=, <, >, <= and =>
   • value is numerical value used for comparison in the filter.

Export CSV Jump to heading #

• Click CSV (7) to download the entire table in CSV format.

  Info

  All data gets exported to CSV, regardless of any filter previously set.

Navigate between pages Jump to heading #

1. Click on the page number (8) or << and >> to switch pages.

2. Choose the number of items to display: 10, 25, or 50O.

Sort data Jump to heading #

• Click on the up or down arrow next to the column header to sort data by ascending or descending order.

Understanding data from Real-time Dashboard Jump to heading #

The Real-time Dashboard interface contains a number of input and output values. The following list documents their meaning, syntax, and, if applicable, the current method of value calculation.

Overview pane Jump to heading #

The Overview pane displays general and summarized real-time information about the HAProxy Enterprise node.

Stats pane Jump to heading #

The Stats pane displays detailed real time information about the HAProxy Enterprise frontends and backends, and allows you to perform management actions on servers.

The checkbox left of the frontend/backend/listen name selects all servers in the block for the Server Management ------ Actions at the bottom. For each server line:

Manage servers Jump to heading #

You can perform specific management tasks on selected frontends, backends and listen blocks.

Perform an action on server(s) Jump to heading #

1. Select a server by clicking on the checkbox next to its name. To select all servers in a block, click the checkbox next to the block name.

2. Select a task from the drop-down list (see below).

3. Click Apply.

   Statistics	Description
   Set state to READY	Set server state to READY (Enable Server)
   Set state to DRAIN	Set server state to DRAIN (remove from load-balancing, but remain available for health checks and persistent connections)
   Set state to MAINT	Set server state to MAINT (Disable Server)
   Health: disable checks	Mark primary server health checks as temporarily stopped
   Health: enable checks	Enable primary server health checks
   Health: force UP	Force server health to UP (regardless of pending checks)
   Health: force NOLB	Force server health to NOLB state (regardless of slow checks)
   Health: force DOWN	Force server health to DOWN (regardless of pending checks)
   Agent: disable checks	Mark auxiliary agent checks as temporarily stopped
   Agent: enable checks	Enable auxiliary agent checks
   Agent: force UP	Force server agent state to UP
   Agent: force DOWN	Force server agent state to DOWN
   Kill Sessions	Immediately terminate all server sessions
