Add IP static routes

You can assign manually configured routing entries to your appliance.

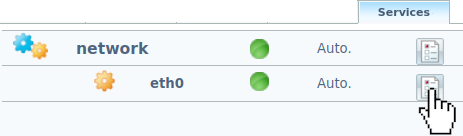

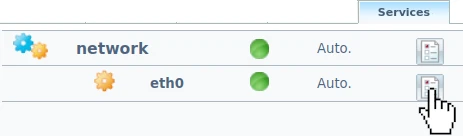

1. In the Services tab, click network instance setup next to a network interface.



2. Add a static route through the following syntax.

   ip route <ip/mask> <gateway>

   ip route <ip/mask> <gateway>

   Example:

   service network eth0
     ip address 192.168.1.11/24
     ip route 10.0.0.0/24 192.168.1.1

   service network eth0
     ip address 192.168.1.11/24
     ip route 10.0.0.0/24 192.168.1.1

3. Reload the network interface.

4. To make your changes persistent after a reboot, click the Setup tab. Then click Save under Configuration.
