ALB5300

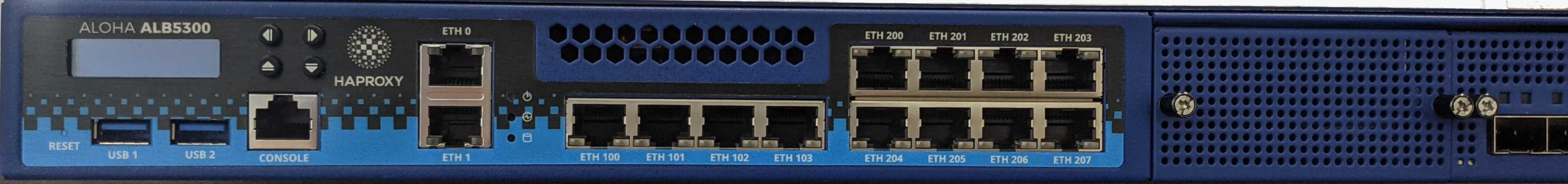

ALB5300 Load Balancer (Front side)

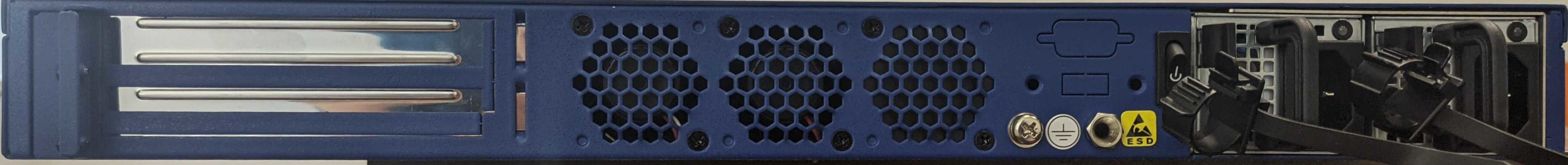

ALB5300 Load Balancer (Back side)

Physical specifications Jump to heading

Form factor Value
Processor Intel® Core™ i7 CPU or similar
System Memory 16 GB
Storage 2 x 32 GB SATA SSD
Networking Ethernet: 8 x Gbe RJ45 Intel® i210(SKU A), 4x Gbe RJ45 Intel® i350-AM4; LAN module #1: 4 x 10Gbe SFP+ Intel® xl710; LAN module #2 (optional): 2 x 40Gbe QSFP+ Intel® xl710
I/O Interface Reset Button: 1; Serial: 1 x Console port (RJ45 connector); Management ports: 2 x RJ45; USB: 2 x USB 3.0
Physical Dimensions W x H x D: 438 mm x 500 mm x 44 mm (17.24"x 19.69"x 1.73"); Weight: 7.1 kg (15.62 lbs)
Power 300W 1+1 ATX Redundant PSUs; Input: AC Power Inlet on PSU
Approvals / Compliance RoHS, CE/FCC Class A, UL
Hardware Type Rack 1U

Availability and support roadmap Jump to heading

Future dates are estimates.

Milestone Date Description
End of Sale Q4/2022 After this date, if a hardware failure occurs, the failed unit will be replaced by an identical model if available. If one is not available, the entire cluster must be replaced by a newer equivalent model.
Final Firmware Update Q3/2026 After this date, the model is no longer included in firmware updates, which are provided in Q1 each year. After this date, only security and critical fixes are provided for the latest existing LTS version, which are provided in Q3 each year.
End of Support Q3/2030 After this date, the latest LTS version supporting the model is discontinued. The system is no longer supported.
