Consul service mesh

HashiCorp Consul operates as a service mesh when you enable its Connect mode. In this mode, Consul agents integrate with HAProxy Enterprise to form an interconnected web of proxies. Whenever one of your services needs to call another, their communication is relayed through the web, or mesh, with HAProxy Enterprise nodes passing messages between all services.

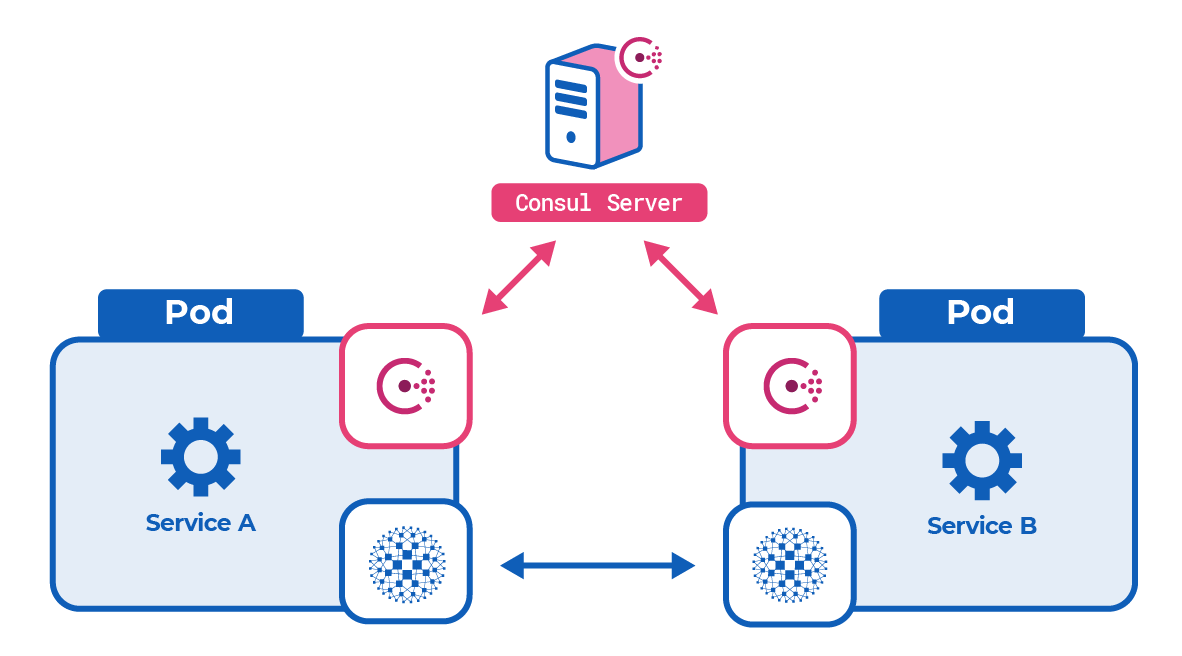

An HAProxy Enterprise node exists next to each of your services on both the caller and callee end. When a caller makes a request, they direct it to localhost where HAProxy Enterprise is listening. HAProxy Enterprise then relays it transparently to the remote callee. From the caller’s perspective, all services appear to be local, which simplifies the service’s configuration.

Consul service mesh diagram

Deploy in Kubernetes Jump to heading

This section describes how to deploy the Consul service mesh with HAProxy Enterprise in Kubernetes.

Deploy the Consul servers Jump to heading

Consul agents running in server mode watch over the cluster and send service discovery information to each Consul client in the service mesh.

Deploy the Consul server nodes. In Kubernetes, you can install the Consul Helm chart.

nix
helm repo add hashicorp https://helm.releases.hashicorp.com
helm repo update
helm install consul hashicorp/consul \
  --set global.name=consul \
  --set connect=true

nix
helm repo add hashicorp https://helm.releases.hashicorp.com
helm repo update
helm install consul hashicorp/consul \
  --set global.name=consul \
  --set connect=true

If you are using a single-node Kubernetes cluster, such as minikube, then set the server.replicas and server.bootstrapExpect flags, as described in the guide Consul Service Discovery and Mesh on Minikube.

nix
helm install consul hashicorp/consul \
  --set global.name=consul \
  --set connect=true \
  --set server.replicas=1 \
  --set server.bootstrapExpect=1

nix
helm install consul hashicorp/consul \
  --set global.name=consul \
  --set connect=true \
  --set server.replicas=1 \
  --set server.bootstrapExpect=1

Create a file named pod-reader-role.yaml and add the following contents to it.

This creates a Role and RoleBinding resource in your Kubernetes cluster that grant permissions to the Consul agents to read pod labels.

pod-reader-role.yaml
yaml
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: default
  name: pod-reader
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "watch", "list"]

---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: read-pods
  namespace: default
subjects:
- kind: User
  name: system:serviceaccount:default:default
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pod-reader
  apiGroup: rbac.authorization.k8s.io

pod-reader-role.yaml
yaml
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: default
  name: pod-reader
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "watch", "list"]

---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: read-pods
  namespace: default
subjects:
- kind: User
  name: system:serviceaccount:default:default
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pod-reader
  apiGroup: rbac.authorization.k8s.io

Deploy it with kubectl apply:

nix
kubectl apply -f pod-reader-role.yaml

nix
kubectl apply -f pod-reader-role.yaml

Deploy your application Jump to heading

For each service that you want to include in the service mesh, you must deploy two extra containers into the same pod.

container 1: your application
container 2: Consul agent, consul
container 3: HAProxy-Consul connector, hapee-plus-registry.haproxy.com/hapee-consul-connect

The three containers (application, Consul, Consul-HAProxy Enterprise connector) are defined inside a single pod.

Use kubectl create secret to store your credentials for the private HAProxy Docker registry, replacing <KEY> with your HAProxy Enterprise license key. You will pull the hapee-consul-connect container image from this registry.

nix
kubectl create secret docker-registry regcred --namespace=default --docker-server=hapee-plus-registry.haproxy.com --docker-username=<KEY> --docker-password=<KEY>

nix
kubectl create secret docker-registry regcred --namespace=default --docker-server=hapee-plus-registry.haproxy.com --docker-username=<KEY> --docker-password=<KEY>

Add the haproxy-enterprise-consul and consul containers to each of your Kubernetes Deployment manifests. In the example below, we deploy these two containers inside the same pod as a service named example-service.

example-deployment.yaml
yaml
apiVersion: apps/v1
kind: Deployment
metadata:
 name: example-service
 labels:
   app: example-service
spec:
 replicas: 1
 selector:
   matchLabels:
     app: example-service
 template:
   metadata:
     labels:
       app: example-service
   spec:
     imagePullSecrets:
     - name: regcred
     containers:
     - name: example-service
       image: jmalloc/echo-server
     - name: haproxy-enterprise-consul
       image: hapee-plus-registry.haproxy.com/hapee-consul-connect
       args:
       - -sidecar-for=example-service
       - -enable-intentions
     - name: consul
       image: consul
       env:
             - name: CONSUL_LOCAL_CONFIG
               value: '{
                 "service": {
                   "name": "example-service",
                   "port": 80,
                   "connect": {
                     "sidecar_service": {}
                   }
                 }
             }'
       args: ["agent", "-bind=0.0.0.0", "-retry-join=provider=k8s label_selector=\"app=consul\""]

example-deployment.yaml
yaml
apiVersion: apps/v1
kind: Deployment
metadata:
 name: example-service
 labels:
   app: example-service
spec:
 replicas: 1
 selector:
   matchLabels:
     app: example-service
 template:
   metadata:
     labels:
       app: example-service
   spec:
     imagePullSecrets:
     - name: regcred
     containers:
     - name: example-service
       image: jmalloc/echo-server
     - name: haproxy-enterprise-consul
       image: hapee-plus-registry.haproxy.com/hapee-consul-connect
       args:
       - -sidecar-for=example-service
       - -enable-intentions
     - name: consul
       image: consul
       env:
             - name: CONSUL_LOCAL_CONFIG
               value: '{
                 "service": {
                   "name": "example-service",
                   "port": 80,
                   "connect": {
                     "sidecar_service": {}
                   }
                 }
             }'
       args: ["agent", "-bind=0.0.0.0", "-retry-join=provider=k8s label_selector=\"app=consul\""]

Note the following arguments for the haproxy-enterprise-consul container:

Argument	Description
`-sidecar-for example-service`	Indicates the name of the service for which to create an HAProxy Enterprise proxy.
`-enable-intentions`	Enables Consul intentions, which HAProxy Enterprise enforces.

Note the following arguments for the consul container:

Argument	Description
`agent`	Runs the Consul agent.
`-bind=0.0.0.0`	The address that should be bound to for internal cluster communications.
`-retry-join=provider=k8s label_selector="app=consul"`	Similar to `-join`, which specifies the address of another agent to join upon starting up (typically one of the Consul server agents), but allows retrying a join until it is successful. In Kubernetes, you set this to `provider=k8s` and then include a label selector for finding the Consul servers. The Consul Helm chart adds the label `app=consul` to the Consul server pods.

We’ve registered the example-service with the Consul service mesh by setting an environment variable named CONSUL_LOCAL_CONFIG in the Consul container. This defines the Consul configuration and registration for the service. It indicates that the service receives requests on port 80.

json
{
  "service": {
    "name": "example-service",
    "port": 80,
    "connect": {
      "sidecar_service": {}
  }
}

json
{
  "service": {
    "name": "example-service",
    "port": 80,
    "connect": {
      "sidecar_service": {}
  }
}

Deploy it with kubectl apply:

nix
kubectl apply -f example-service.yaml

nix
kubectl apply -f example-service.yaml

Deploy a second application that calls the other Jump to heading

The example-service from the previous section is published to the service mesh where other services within the mesh can call it. To define a service that calls another, add a proxy section to the connect.sidecar_service section of the Consul container’s configuration.

In the example below, the service named app-ui adds the example-service as an upstream service, which makes it available at localhost at port 3000 inside the pod.

app-ui-deployment.yaml
yaml
apiVersion: apps/v1
kind: Deployment
metadata:
 name: app-ui
 labels:
   app: app-ui
spec:
   replicas: 1
   selector:
     matchLabels:
       app: app-ui
   template:
     metadata:
       labels:
         app: app-ui
     spec:
       containers:
       - name: app-ui
         image: jmalloc/echo-server
       - name: haproxy-enterprise-consul
         image: hapee-plus-registry.haproxy.com/hapee-consul-connect
         args:
         - -sidecar-for=app-ui
         - -enable-intentions
       - name: consul
         image: consul
         env:
         - name: CONSUL_LOCAL_CONFIG
           value: '{
               "service": {
                 "name": "app-ui",
                 "port": 80,
                 "connect": {
                   "sidecar_service": {
                       "proxy": {
                           "upstreams": [
                               {
                                 "destination_name": "example-service",
                                 "local_bind_port": 3000
                               }
                           ]
                       }
                   }
                 }
               }
             }'
         args: ["agent", "-bind=0.0.0.0", "-retry-join=provider=k8s label_selector=\"app=consul\""]

app-ui-deployment.yaml
yaml
apiVersion: apps/v1
kind: Deployment
metadata:
 name: app-ui
 labels:
   app: app-ui
spec:
   replicas: 1
   selector:
     matchLabels:
       app: app-ui
   template:
     metadata:
       labels:
         app: app-ui
     spec:
       containers:
       - name: app-ui
         image: jmalloc/echo-server
       - name: haproxy-enterprise-consul
         image: hapee-plus-registry.haproxy.com/hapee-consul-connect
         args:
         - -sidecar-for=app-ui
         - -enable-intentions
       - name: consul
         image: consul
         env:
         - name: CONSUL_LOCAL_CONFIG
           value: '{
               "service": {
                 "name": "app-ui",
                 "port": 80,
                 "connect": {
                   "sidecar_service": {
                       "proxy": {
                           "upstreams": [
                               {
                                 "destination_name": "example-service",
                                 "local_bind_port": 3000
                               }
                           ]
                       }
                   }
                 }
               }
             }'
         args: ["agent", "-bind=0.0.0.0", "-retry-join=provider=k8s label_selector=\"app=consul\""]

Note that we set the environment variable named CONSUL_LOCAL_CONFIG in the Consul container to register this service with the service mesh. It declares that it has an upstream dependency on the example-service service.

Optional: Publish the web dashboard Jump to heading

The Helm chart creates a Kubernetes service named consul-server that exposes a web dashboard on port 8500. To make it available outside of the Kubernetes cluster, you can forward the port via the HAProxy Enterprise Kubernetes Ingress Controller:

Deploy the HAProxy Enterprise Kubernetes Ingress Controller into your Kubernetes cluster.

Create a file named consul-server-ingress.yaml that defines an Ingress resource for the Consul service.

In this example, we define a host-based rule that routes all requests for consul.test.local to the consul-server service at port 8500.

consul-server-ingress.yaml
yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: consul-server-ingress
spec:
  rules:
    - host: consul.test.local
      http:
        paths:
          - path: "/"
            pathType: Prefix
            backend:
              service:
                name: consul-server
                port:
                  number: 8500

consul-server-ingress.yaml
yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: consul-server-ingress
spec:
  rules:
    - host: consul.test.local
      http:
        paths:
          - path: "/"
            pathType: Prefix
            backend:
              service:
                name: consul-server
                port:
                  number: 8500

Deploy it using kubectl apply:

nix
kubectl apply -f consul-server-ingress.yaml

nix
kubectl apply -f consul-server-ingress.yaml

Add an entry to your system’s /etc/hosts file that maps the consul.test.local hostname to the IP address of your Kubernetes cluster. If you are using minikube, you can get the IP address of the node with minikube ip. Below is an example /etc/hosts file:
```
text
192.168.99.125  consul.test.local
```
```
text
192.168.99.125  consul.test.local
```

Use kubectl get service to check which port the ingress controller has mapped to port 80. In the example below, port 80 is mapped to port 30624.

nix
minikube ip

nix
minikube ip

output
text
192.168.99.120

output
text
192.168.99.120

nix
kubectl get service kubernetes-ingress

nix
kubectl get service kubernetes-ingress

output
text
NAME                 TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                                     AGE
kubernetes-ingress   NodePort   10.110.104.60   <none>        80:30624/TCP,443:31147/TCP,1024:31940/TCP   7m40s

output
text
NAME                 TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                                     AGE
kubernetes-ingress   NodePort   10.110.104.60   <none>        80:30624/TCP,443:31147/TCP,1024:31940/TCP   7m40s

Open a browser window and go to the consul.test.local address at that port, e.g. consul.test.local:30624.

Optional: Enable Consul ACLs Jump to heading

In Consul, ACLs are a security measure that requires Consul agents to present an authentication token before they can join the cluster or call API methods.

When installing Consul, set the global.acls.manageSystemACLs flag to true to enable ACLs.

nix
helm install consul hashicorp/consul \
  --set global.name=consul \
  --set connect=true \
  --set global.acls.manageSystemACLs=true

nix
helm install consul hashicorp/consul \
  --set global.name=consul \
  --set connect=true \
  --set global.acls.manageSystemACLs=true

Install jq, a command-line utility for processing JSON data. It provides a simple and powerful way to filter, format, and transform JSON data structures.
```
nix
sudo apt install jq
```
```
nix
sudo apt install jq
```
```
nix
sudo yum install jq
```
```
nix
sudo yum install jq
```

Use kubectl get secret to get the auto-generated bootstrap token, which is base64 encoded.

nix
kubectl get secret consul-bootstrap-acl-token -o json | jq -r '.data.token' | base64 -d

nix
kubectl get secret consul-bootstrap-acl-token -o json | jq -r '.data.token' | base64 -d

output
text
8f1c8c5e-d0fb-82ff-06f4-a4418be245dc

output
text
8f1c8c5e-d0fb-82ff-06f4-a4418be245dc

Use this token to log into the Consul web UI.

In the Consul web UI, go to ACL > Policies and select the client-token row. Change the policy’s value so that the service_prefix section has a policy of write:

hcl
node_prefix "" {
  policy = "write"
}
service_prefix "" {
  policy = "write"
}

hcl
node_prefix "" {
  policy = "write"
}
service_prefix "" {
  policy = "write"
}

Go back to the ACL screen and select the client-token row. Copy this token value (e.g. f62a3058-e139-7e27-75a0-f47df9e2e4bd).

For each of your services, update your Deployment manifest so that the haproxy-enterprise-consul container includes the -token argument, set to the client-token value.

yaml
- name: haproxy-enterprise-consul
  image: hapee-plus-registry.haproxy.com/hapee-consul-connect
  args:
  args:
  - -sidecar-for=app-ui
  - -enable-intentions
  - -token=f62a3058-e139-7e27-75a0-f47df9e2e4bd

yaml
- name: haproxy-enterprise-consul
  image: hapee-plus-registry.haproxy.com/hapee-consul-connect
  args:
  args:
  - -sidecar-for=app-ui
  - -enable-intentions
  - -token=f62a3058-e139-7e27-75a0-f47df9e2e4bd

Update the consul container’s configuration to include an acl section where you will specify the same client-token value. Also, set primary_datacenter to dc1 (or to the value you’ve set for your primary datacenter, if you have changed it).

yaml
- name: consul
  image: consul
  env:
    - name: CONSUL_LOCAL_CONFIG
      value: '{
        "primary_datacenter": "dc1",
        "acl": {
          "enabled": true,
          "default_policy": "allow",
          "down_policy": "extend-cache",
          "tokens": {
            "default": "f62a3058-e139-7e27-75a0-f47df9e2e4bd"
          }
        },
        "service": {
          "name": "example-service",
          "port": 80,
          "connect": {
            "sidecar_service": {}
          }
        }
      }'

yaml
- name: consul
  image: consul
  env:
    - name: CONSUL_LOCAL_CONFIG
      value: '{
        "primary_datacenter": "dc1",
        "acl": {
          "enabled": true,
          "default_policy": "allow",
          "down_policy": "extend-cache",
          "tokens": {
            "default": "f62a3058-e139-7e27-75a0-f47df9e2e4bd"
          }
        },
        "service": {
          "name": "example-service",
          "port": 80,
          "connect": {
            "sidecar_service": {}
          }
        }
      }'

Product Documentation

API Documentation

Configuration Documentation

Consul service mesh

Deploy in Kubernetes Jump to heading

Deploy the Consul servers Jump to heading

Deploy your application Jump to heading

Deploy a second application that calls the other Jump to heading

Optional: Publish the web dashboard Jump to heading

Optional: Enable Consul ACLs Jump to heading

Product Documentation

API Documentation

Configuration Documentation

Deploy in Kubernetes Jump to heading #

Deploy the Consul servers Jump to heading #

Deploy your application Jump to heading #

Deploy a second application that calls the other Jump to heading #

Optional: Publish the web dashboard Jump to heading #

Optional: Enable Consul ACLs Jump to heading #

Privacy Settings

Deploy in Kubernetes Jump to heading

Deploy the Consul servers Jump to heading

Deploy your application Jump to heading

Deploy a second application that calls the other Jump to heading

Optional: Publish the web dashboard Jump to heading

Optional: Enable Consul ACLs Jump to heading
